Iron Cobalt Hysteresis Alloy 2J11 Cold Rolled Strip Vicalloy hysteresis motors

Vicalloy is a family of cobalt-iron-vanadium wrought ferromagnetic alloys which have high coercivity and are used to make permanent magnets and other magnetic components. Vicalloy is precipitation hardened and can be formed by a number of cold working techniques. It is commonly used in electromechanical device applications, such as Wiegand wires because it shows a large Wiegand effect.

It consists of 52% cobalt, 10% vanadium, trace amounts of elements such as carbon and manganese, and balance (~37%) iron.

Its magnetic maximum energy product BHmax is 1 MGOe when cast and as high as 3.5 MGOe when appropriately cold worked.

'Vicalloy' was used in hysteresis motors both in solid and laminated form (for higher frequency applications).

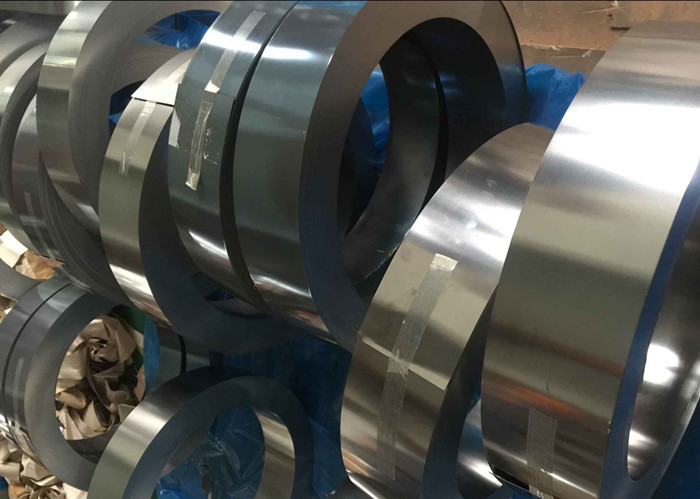

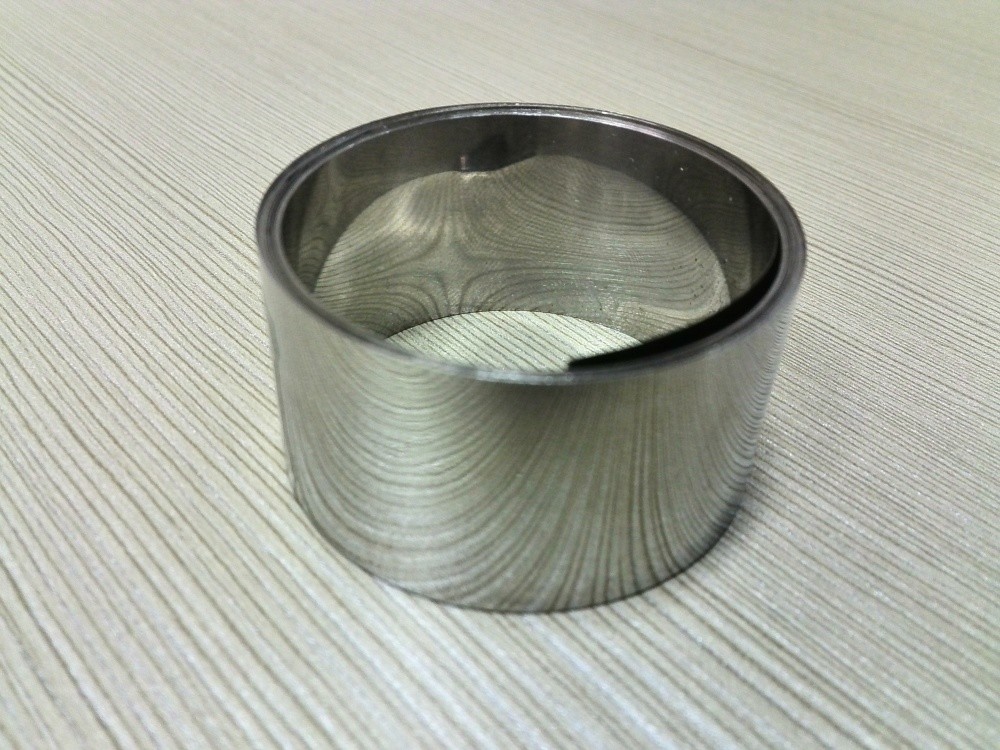

Iron-Cobalt Hysteresis Alloy 2J11 strip Thickness:0.05-1.0mm With:5-200mm

2J11 is a deformable permanent magnetic alloy with good properties, capable of forging, rolling and drawing and cutting processing.

The 2J11 permanent magnet alloy can be made into thin sections or complex shaped parts with different magnetic and high mechanical properties.

Chemical composition 2J11 (%, weight)

Physical properties:

Density:8.1g/cm3

Melt temperature: 1530 °C-1600 °C

Curie temperature: 860 °C

Restivity: 0.77 Ω·m

Magnetic performance:

Application:

• Magnetic motor rotor
• Magnetic brake
• Hysteresis motor

The corrosion resistance of 2J11 is good and it does not rust in the atmosphere.

2J11 alloy is supplied at Cold-rolled state without heat treatment.

Thickness:0.05-1.0mm

With:5-200mm

We can also supply the other products of 2J11,such as forgings and processed parts according to the customer needs.
