TbDyFe Alloy Rod GMM Giant Magnetostrictive Material made in China fast delivery

Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xForms Of Supply | Rod, Bar, Pin, Ring, Rube, Square Plate | Standard Composition | Tb0.3Dy0.7Fe1.92 |
---|---|---|---|
Density | 9.25g/cm3 | Curie Temperature | 380°C |
Resistivity | 60 X 10-8Ω·m | Product Name | Giant Magnetostrictive Material |
Highlight | TbDyFe Giant Magnetostrictive Material,Alloy Rod Magnetostrictive Material,9.25g/cm3 Magnetostrictive Material |
TbDyFe Alloy Rod GMM-Giant Magnetostrictive Material
Giant Magnetostrictive Materials have a very wide range of applications, such as naval, military (sonar), mechanical industry, electronics, petroleum, textile, aerospace, instrumentation, agriculture and civil use. These applications greatly improved the related industries’ technology, such as high-power GMM transducers for well treatment, which can reduce oil viscosity, improve the flow characteristics, and greatly improve oil production. In the new century of science and technology, the importance of GMM will be more and more prominent, and the application will expand rapidly.
Our GMM materials use vacuum directional solidification technology, the consistency is good. Our company have the advanced dynamic and static test measurement system to strictly check and test every batch of materials to ensure the stability of product quality.
Parameters | Values |
Magnetostrictive performance | >950ppm(500Oe,5MPa) |
Saturated Magnetostrictive performance | >1500ppm |
Energy density | 4.9-25kJ/m3 |
Comagagnetic coefficient d33 | 6-10nm/A |
Response speed | Microseconds |
Elastic modulus | 90Gpa |
The Curie temperature | 380°C |
Working temperature | -40°C~150°C |
Density | 9.15~9.25g/cm3 |

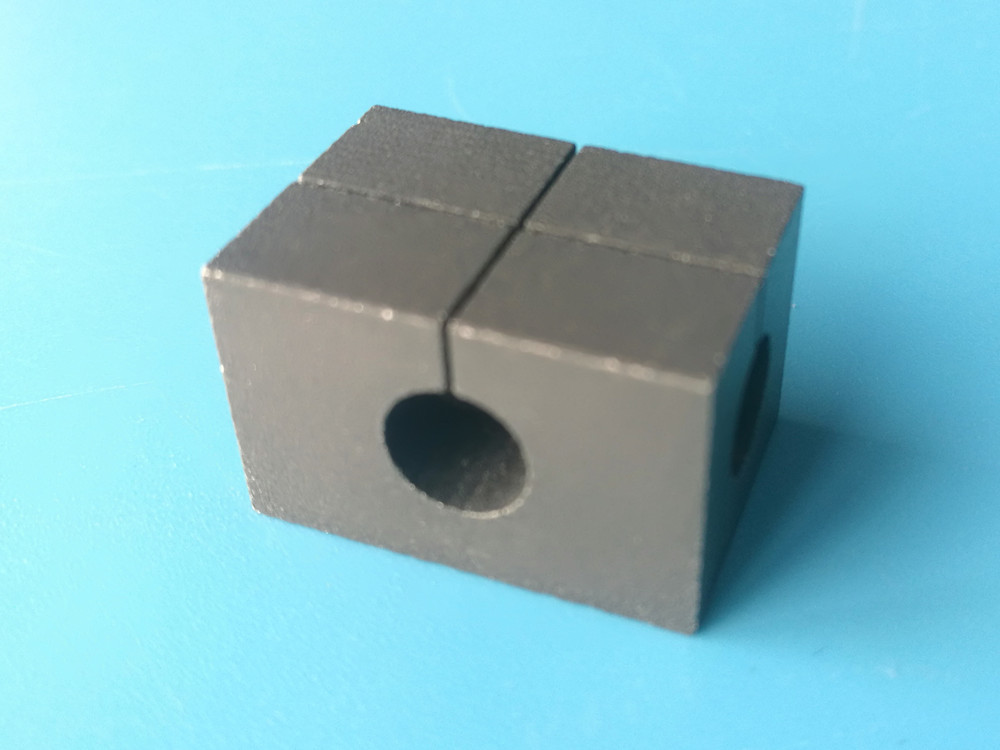

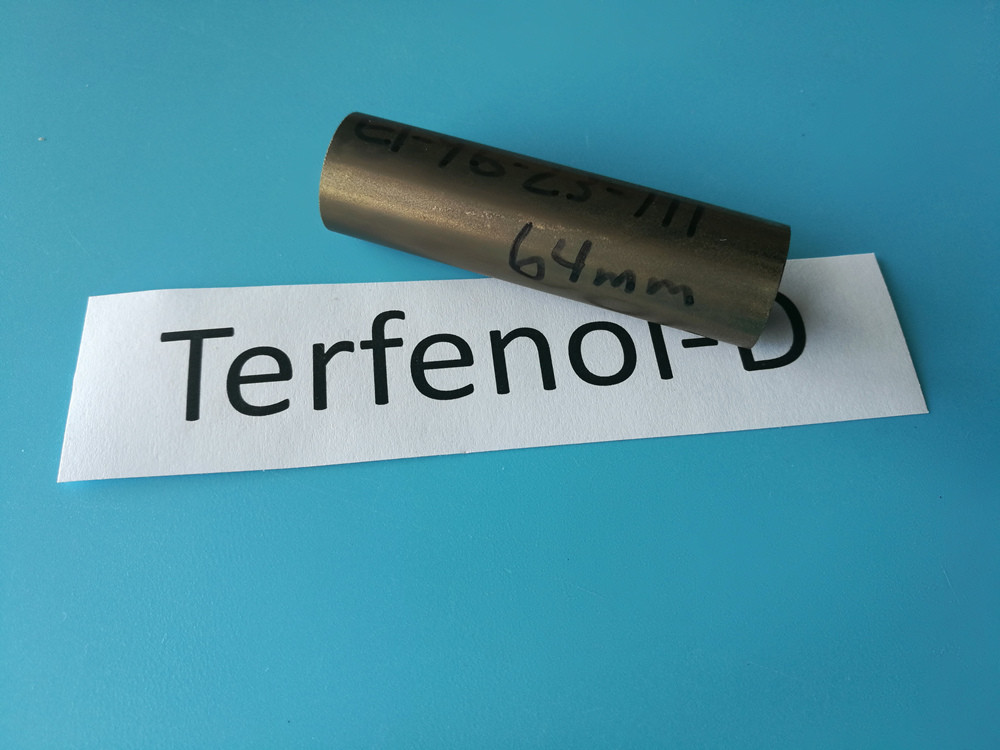

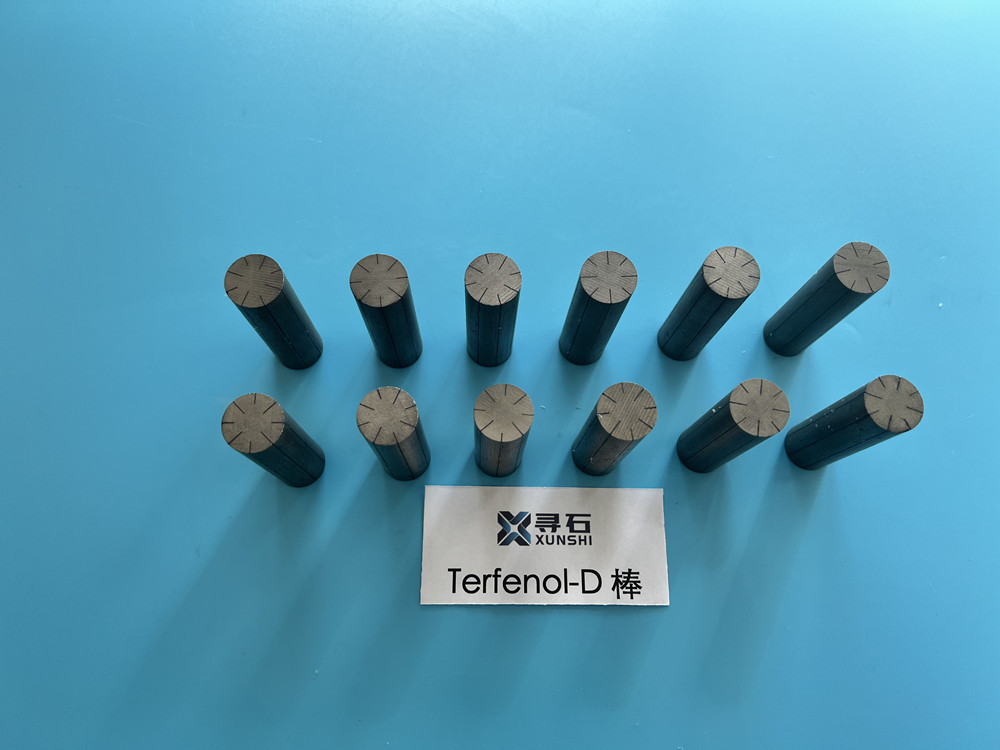

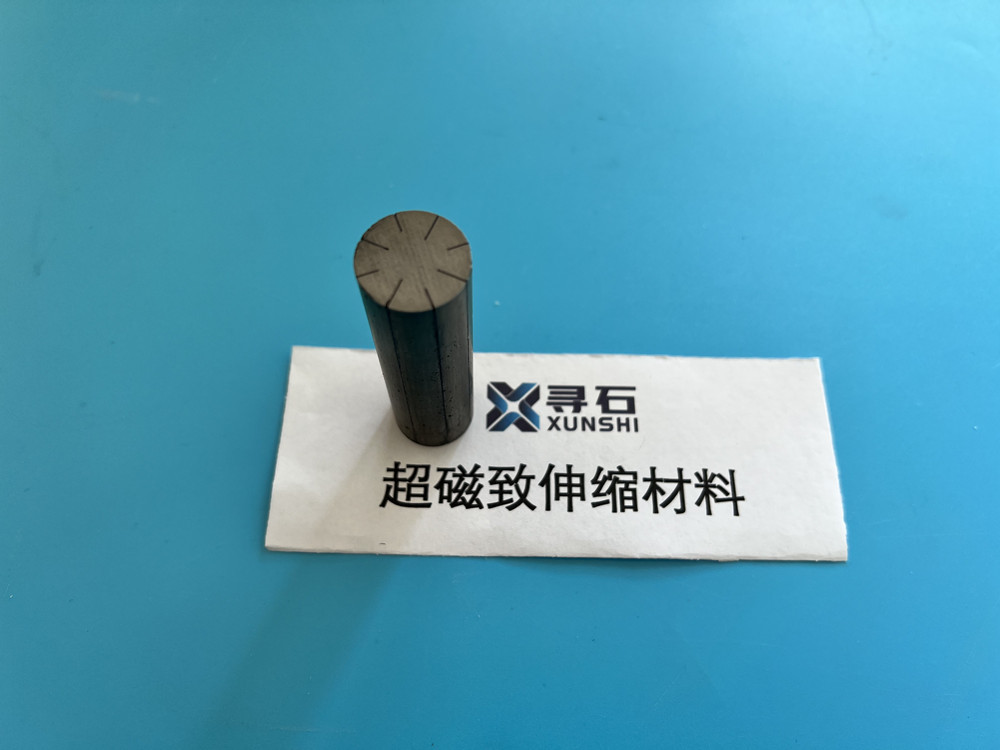

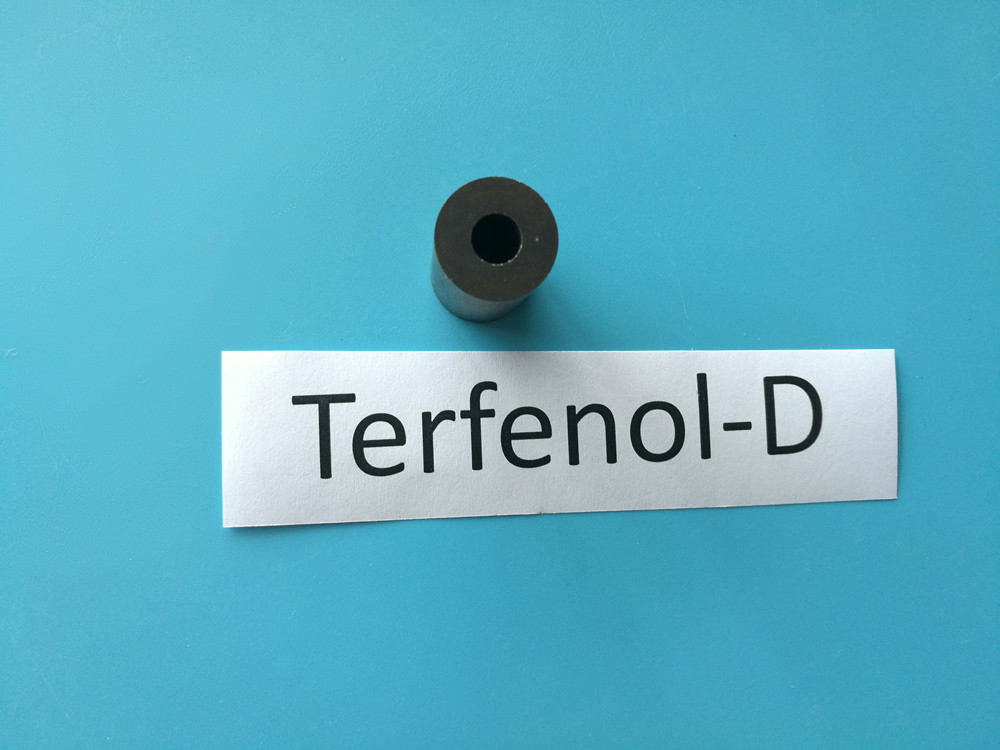

We can supply TbDyFe Giant Magnetostrictive Material in forms of Rod, bar, and other customized shapes are available per request.
General Rod stock diameters: 10mm and 28mm, other specifications can be customized.
In addition, slot opening, cascades and other processing services also can be provided.
