VACOFLUX 48 FeCo soft magnetic alloy with low coercive field strength, high permeabilities and low magnetization losses
| Place of Origin | China |
|---|---|
| Brand Name | XUNSHI |
| Certification | ISO 9001:2015 |
| Model Number | VACOFLUX 48 |
| Minimum Order Quantity | 100 |
| Price | Negotiable |
| Packaging Details | Plywood case |
| Delivery Time | 35 days |
| Payment Terms | T/T |
| Supply Ability | 10000 kg per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | FeCo Alloy | Spec | ASTM A801 Type 1 |
|---|---|---|---|
| Form Of Supply | Strip | Thickness Range | 0.05-1.0mm |
| Highlight | high permeabilities soft magnetic alloy |
||
Product Description
VACOFLUX 48 FeCo soft magnetic alloy with low coercive field strength, high permeabilities and low magnetization losses
VACOFLUX 48 exhibits the lowest coercive field strength and the highest permeability due to the high level of alloy purity. Particularly with the normal form of supply in thin strip thicknesses, VACOFLUX 48 is considered to be the fully optimised solution for low-loss lamination stacks made from cobalt-iron.
Property
- Low coercive field strength,
- High permeabilities
- Low magnetization losses.
VACOFLUX 48 is ideally suited for applications where size and weight reductions are of paramount importance such as aviation, spacecraft applications, or motor racing.
Typical Composition (in wt%)

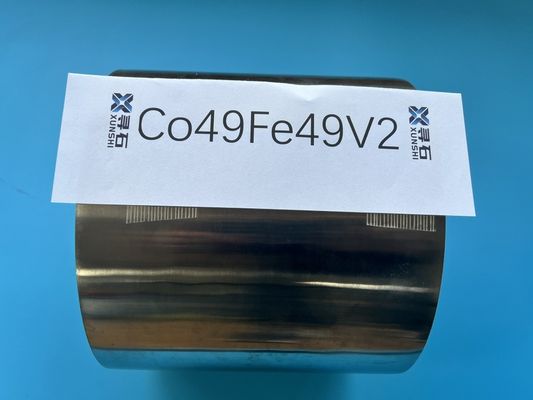

49 Co-49 Fe-2V
IEC 60404-8-6 F11
ASTM A801-09 Alloy Type
Application
Motors and generators with high power density and lowest losses, transformers with low losses at very high flux densities.
Form of supply
Cold rolled strip: thickness 0.05-1.0mm, width 20-240mm
